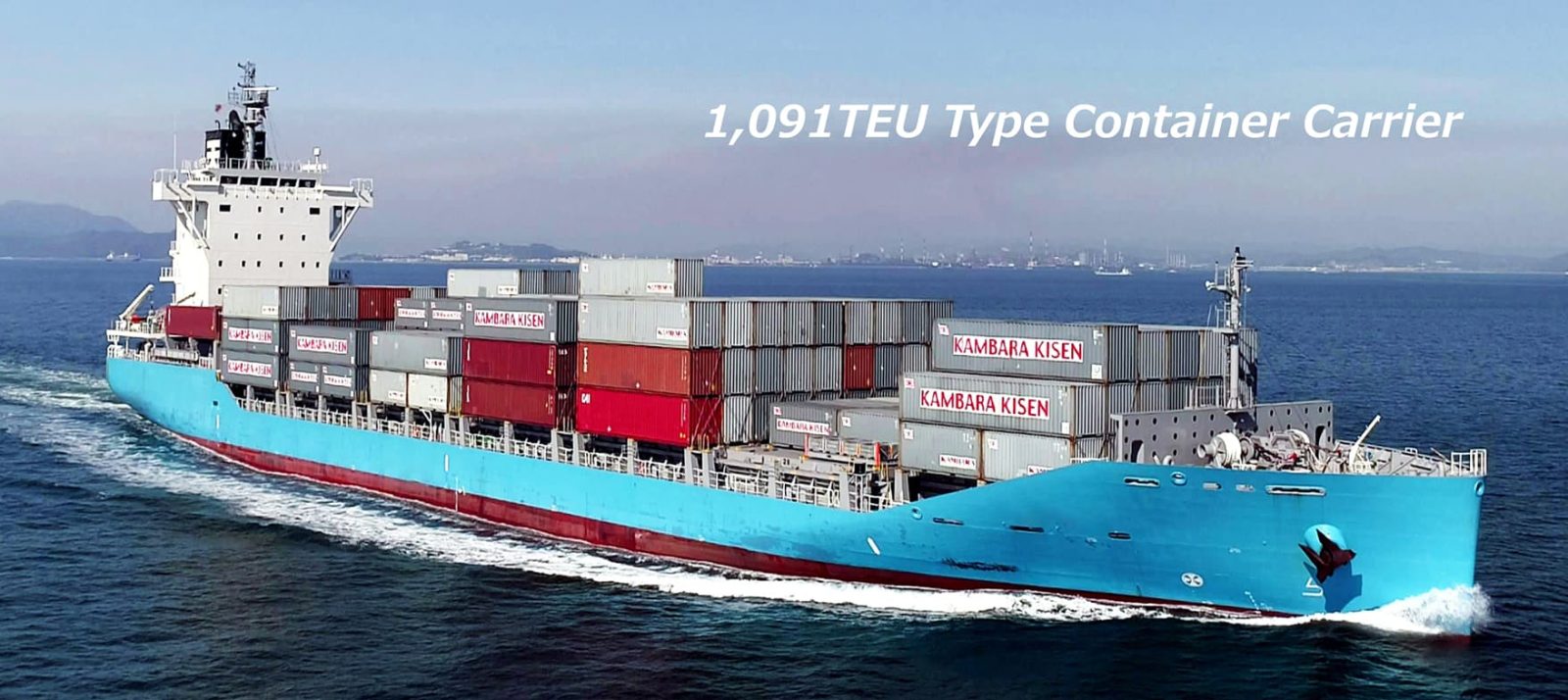

1,000 TEU-type container carrier with the best balance

The high cargo capacity combined with the top-class fuel efficiency is designed to maximize the benefits of the operators. This container carrier is the embodiment of optimum solutions for feeder transport.

Fuel efficiency and environmental performance

  • ・The unique hull form, which reduces resistance, is paired with our exclusive fuel-efficiency technologies to improve the ship’s performance. The ship meets the EEDI Phase 3 requirements.
  • ・Equipped with the environmental technologies devices to prevent the air pollution from the NOx and SOx emissions and marine pollution from the oil spillages, etc.
  • Energy saving device MT-FASTEnergy saving device MT-FAST
  • Energy saving propeller TOP-GREnergy saving propeller TOP-GR

Versatility

  • ・As gross tonnage is less than 10,000，there is no need for a pilot in Japan’s major ports.

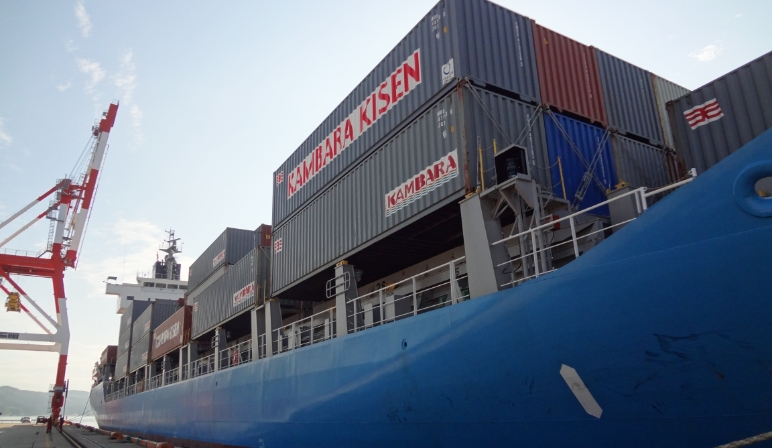

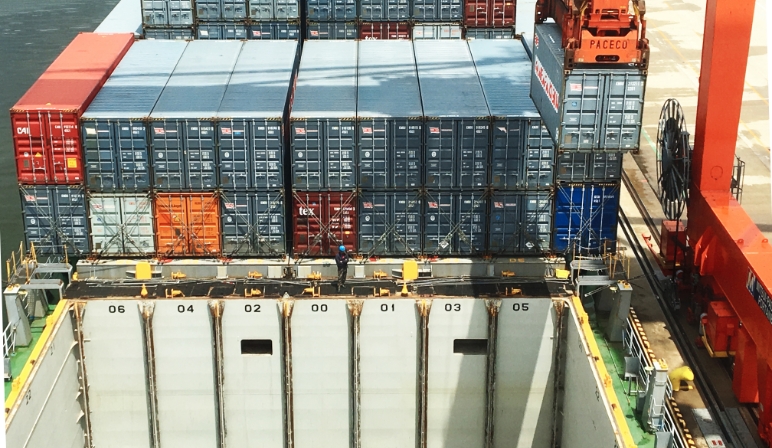

  • ・Equipped with reefer container sockets on both the upper deck and cargo holds. Some cargo holds can also load dangerous cargo containers.

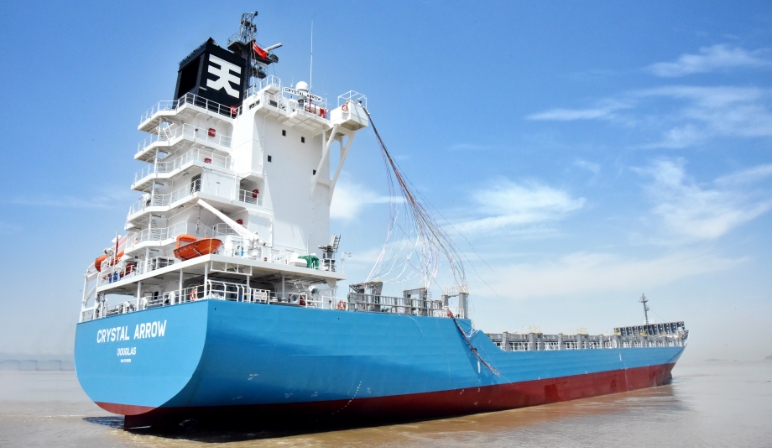

  • ・The accommodation house is located at the stern end. This allows the crane to move smoothly and faster in loading / discharging operation.

Loading performance

  • ・While keeping the compact principal particulars and stability, maximal loading capacity and actual loading capacity have been improved, compared to the previous design.

Specifications

Length over all 146m
Breadth 23.25m
Depth 11.5m
Maximum loading capacity 1,091TEU
Draft 8.5m
Gross Tonnage lass than 10,000
