TESS38

Three meters longer than its predecessor (the TESS35), for an overall length of approximately 180 meters, this 38,300 MT type log and bulk carrier has an additional 3,000 tonnes in dead-weight capacity, offering greater transport efficiency. An environmentally-friendly ship, this vessel is optimised for a diverse range of cargo, and has a high loading capacity that belies its compact size.

Length over all: less than 180m
Breadth: 30m
Depth: 15m
DWT: 38,300MT
Cargo Capacity: 47,800㎥
Draft: 10.45m
Gross Tonnage: 24,100

TESS58

The TESS58, is an “eco ship” that employs energy-saving technologies in its hull design, electronically controlled engine, reduced wind resistance, and other features. Aside from its improved propulsion performance in still water, the TES58 performs well in actual seas even while maintaining high fuel efficiency.

Length over all: less than 190m
Breadth: 32.26m
Depth: 18m
DWT: 57,700MT
Cargo Capacity: 72,600㎥
Draft: 12.8m
Gross Tonnage: 32,600

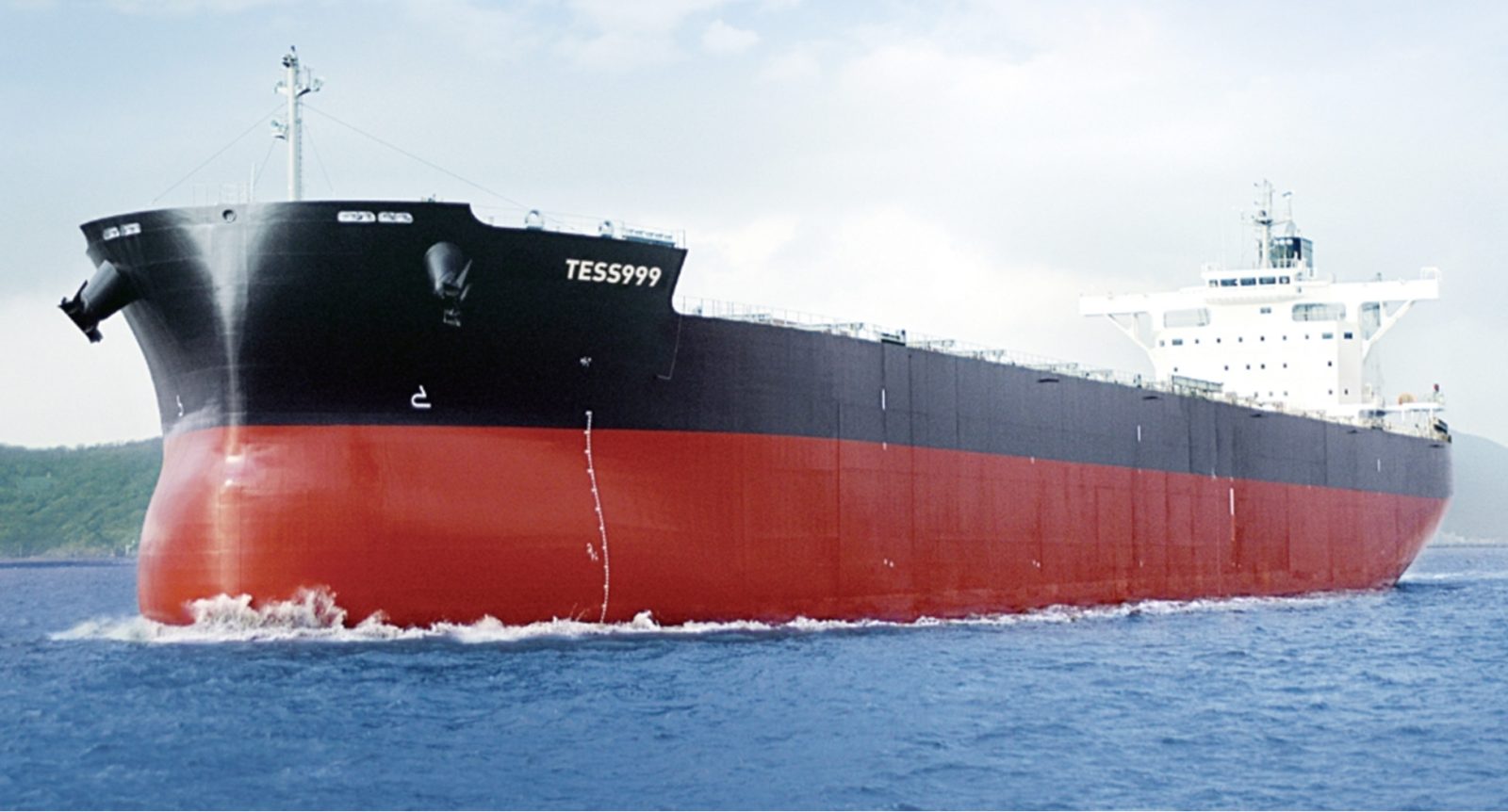

TESS999

Achieving the deadweight capacity of 99,990 MT, with the accomplishment of wider breadth and shallower draft as that of TESS98. The length and air draft of the TESS98 are retained to preserve the versatility.

Length over all: 240m
Breadth: 39m
Depth: 20.05m
DWT: 99,990MT
Cargo Capacity: 118,000㎥
Draft: 14.3m
Gross Tonnage: 55,100

T-CORE180

Let us introduce our cape size bulker “T-CORE”, recently developed to be a core part of the global marine transport. T is the initial for Tsuneishi, and the acronym CORE stands for “For Customer’s Operation, Revenue, and Environment & Safety”. This phrase is based on the development concept; “a core force in the customer’s businesses”. The number 180 in the name “T-CORE180” refers to its size of 180,000 DWT.

Length over all: less than 291.9m
Breadth: 45m
Depth: 24.5m
DWT: 180,000MT
Cargo Capacity: 200,000㎥
Draft: 18.04m
Gross Tonnage: 92,900

WOODEN CHIP CARRIER

A wooden chip carrier equipped with a cargo hold divided into six sections and hatch openings fitted with end-folding type hatch covers. Sporting a significant improvement of approximately 20% in fuel economy performance over our existing vessels, this ship is gentle on the environment.

Length over all: Abt. 199.9m
Breadth: 32.2m
Depth: 22.85m
DWT: 49,200MT
Cargo Capacity: 101,940㎥
Draft: 11.52m
Gross Tonnage: 40,700

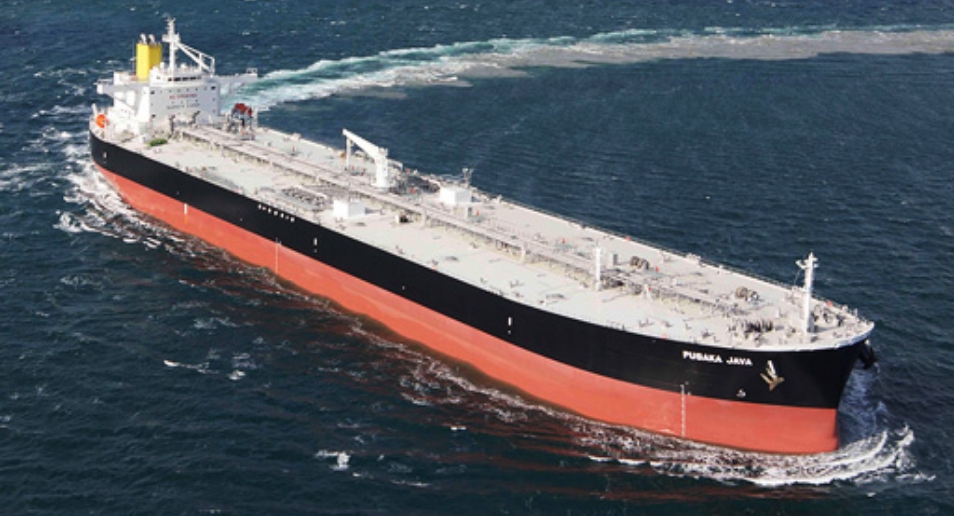

AFRAMAX TANKER

A crude oil tanker in the 100,000 tonne (dead-weight capacity) class that realises high profitability in international maritime transport. Leveraging our proprietary environmental technology, this vessel constitutes a significant advance in fuel economy performance over existing tankers. Boasting both a large dead-weight capacity and high cargo capacity, it is incredibly versatile.

Length over all: Abt. 243.8m
Breadth: 42m
Depth: 21.25m
DWT: 106,300MT
Cargo Capacity: 126,000㎥
Draft: 14.55m
Gross Tonnage: 60,500

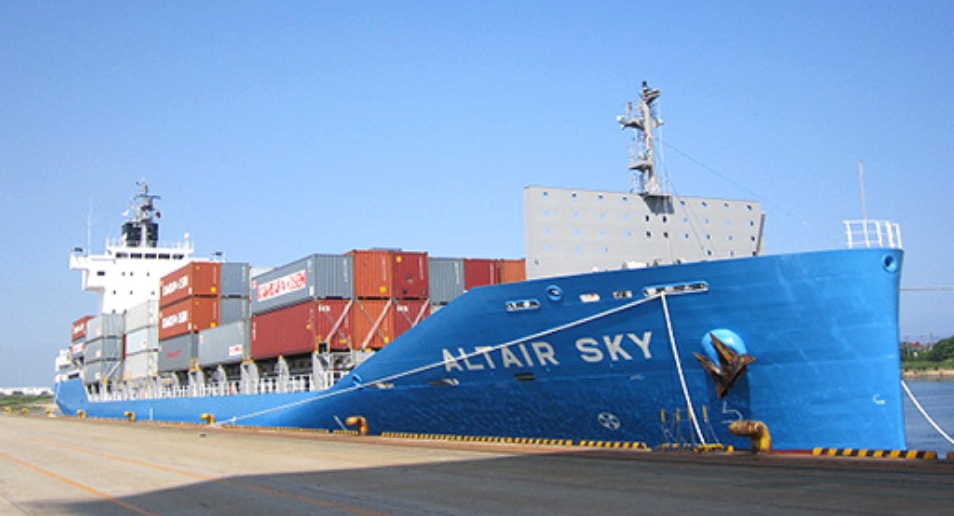

1,020TEU CONTAINER CARRIER

Applying the environmental technology acquired in the development of bulk carriers (such as the TESS series) to container ship development has resulted in a significant drop in fuel consumption. A feeder container carrier with high loading efficiency that can be fitted with refrigerated containers and hazardous materials containers.

Length over all: Abt. 143m
Breadth: 22.6m
Depth: 11.3m
DWT: 12,000MT
Maximum loading capacity: 1,020TEU
Draft: 8.2m
Gross Tonnage: less than 10,000
