Circulating Water Channel
The Circulating Water Channel is mainly used to visualize underwater behavior for ships and offshore structures.
Circulating Water Channel

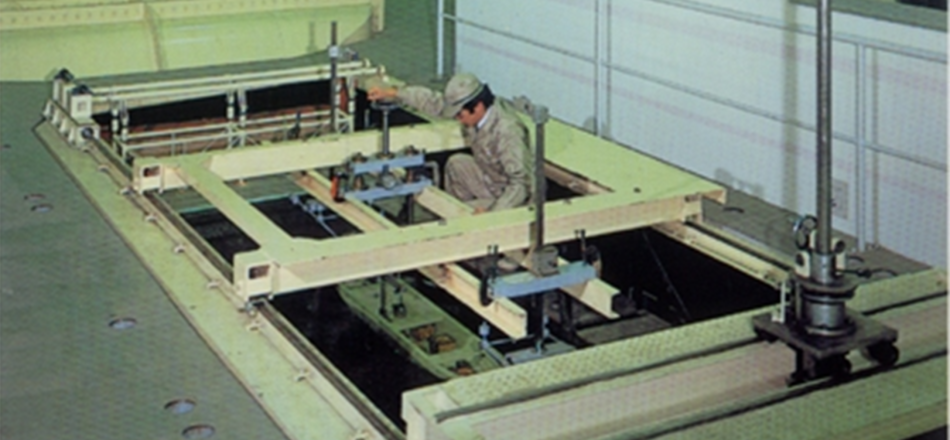

The Circulating Water Channel is vertical circulating type. It has observation windows on both sides and at the bottom in the test section.
Circulating Water Channel Specification
| Dimensions | Length 16.2m x Breadth 4.2m x Height 6.8m |
| Test Section Dimension | Length 25.m x Breadth 2m x Water Depth 1.2m |
| Drive and Flow Speed | Drive: DC motor Max. Output: 75kW Max. Speed: 1.7m/s |
| Models | Ship Models of 2 to 3m long, Submersible vehicle Models, Offshore Structure Models, etc. |
| Major Measuring Equipments |
|
Circulating Water Channel Specification
