Low-Speed Wind Tunnel
The Low-Speed Wind Tunnel is used to measure wind resistance and aerodynamic performance for ships, bridges, steel structures, and offshore structures.

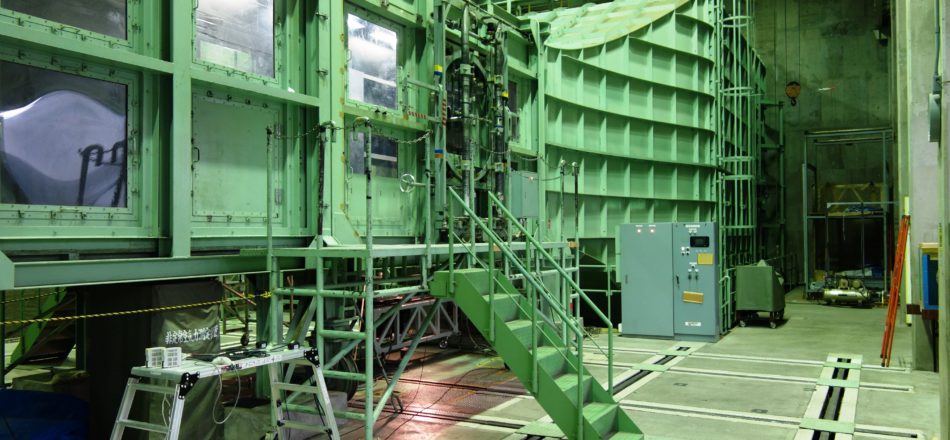

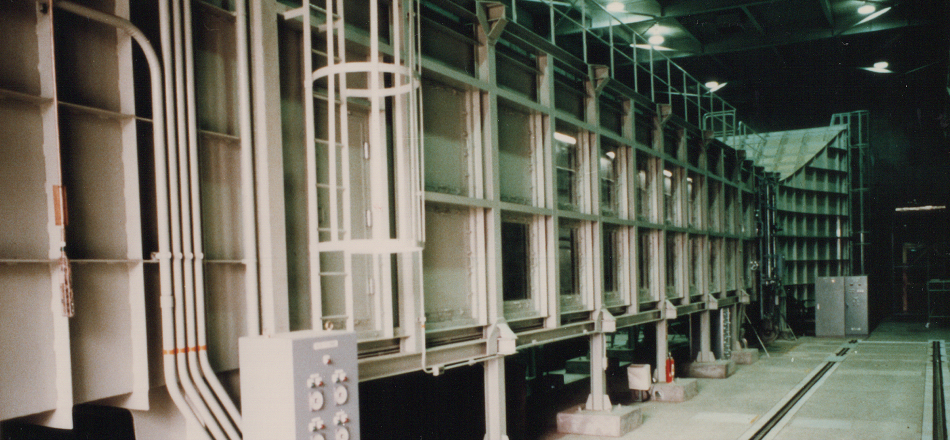

Low-Speed Wind Tunnel

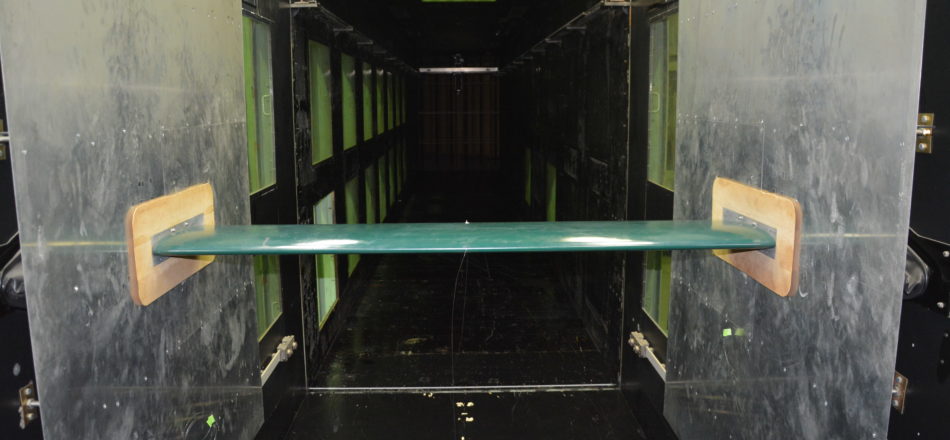

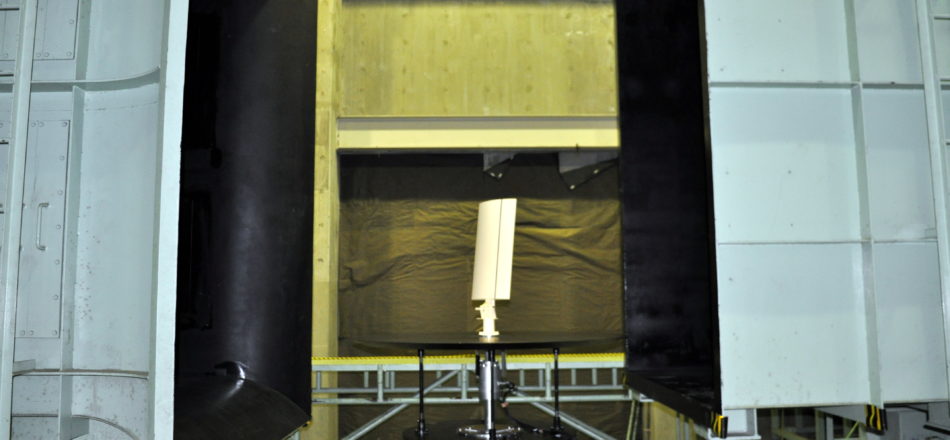

The Low-Speed Wind Tunnel is a horizontal circulating flow type of wind tunnel for structures. A part of the measuring section is movable and to be used with open type. The measuring section located in its back part is shaped long to conduct boundary-layer simulated tests.
Low-Speed Wind Tunnel Specification
| Dimensions | Length 20m x Breadth 2m x Height 3m |
| Drive | D.C. electric motor driven Max. Output: 125kW Max. Wind speed: 20m/s. (30m/s for open return type use) |
| Major Measuring Instruments |
|

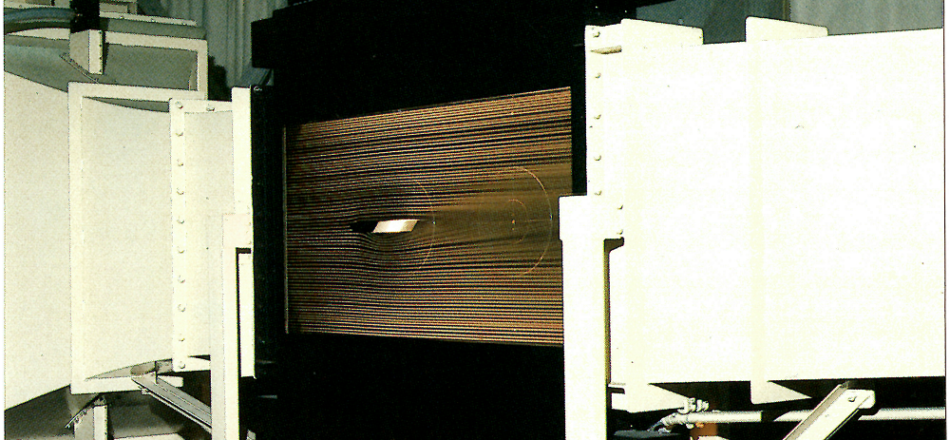

Smoke Tunnel

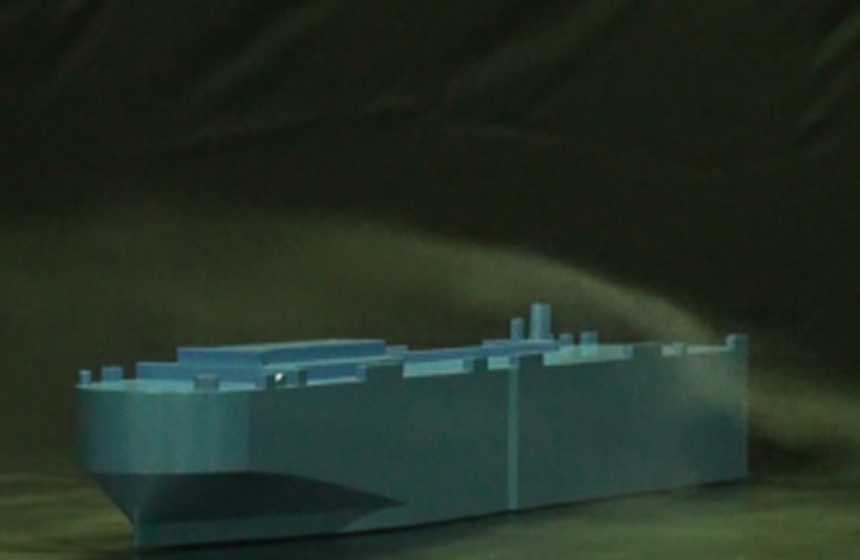

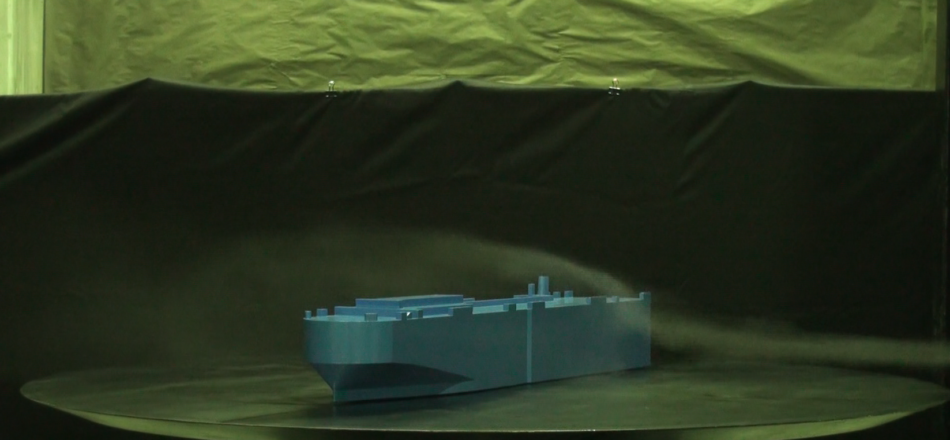

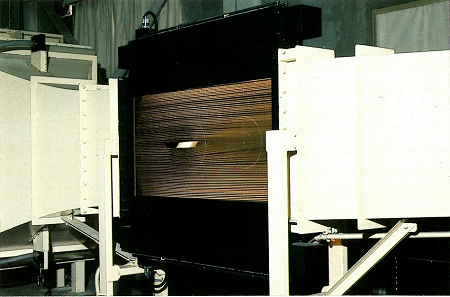

The Smoke Tunnel is used to conduct a visualization experiment for flows around an object.
Smoke Tunnel
| Dimensions | Section type : 2D smoke tunnel Length 1.5m x Breadth 0.15m x Height 0.8m |
| Wind Speed | Max. wind speed: 10m/s |
